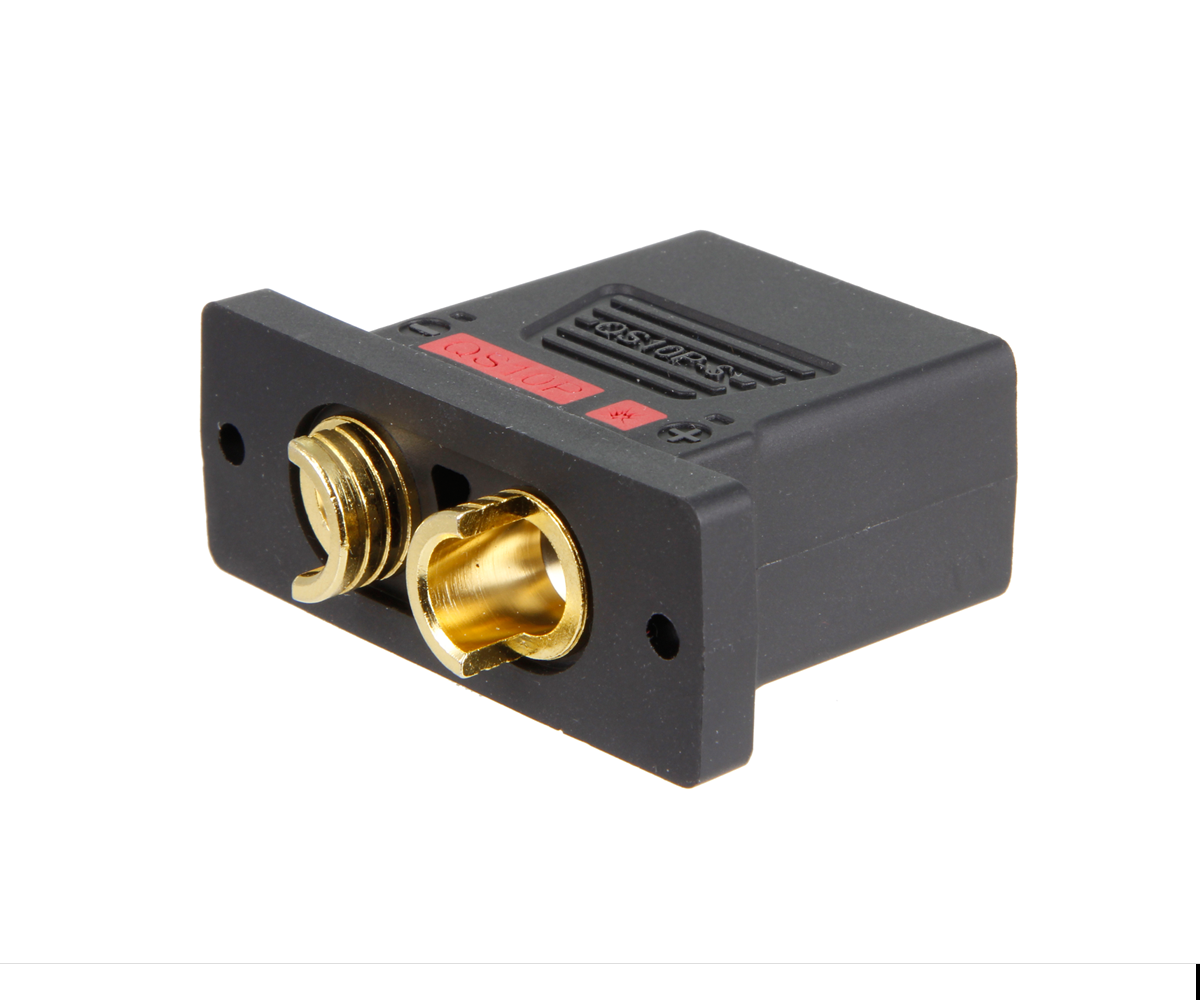

QS10P-S Anti Spark Connector 210A Energy Storage Connector Large Current Plug

Product details

Descriptions: QS10P-S is a high strength anti spark resistance plug, used to avoid sparks in the initial connection.

Reverse design unpolarization.

Model: QS10P-S.

Plastic material: Nylon.

Connector material: gold plated copper 8mm.

Maximum temperature: 200 ℃.

Rated voltage 600 V.

Temperature range: 30 ° C to 200 ° C

Maximum: six stars.Current: 210A-270A.For large current

Customizable wire: provide specifications(Recommended Wire:4AWG-10AWG)

QSP10P-S is a new member of QS series, which is specially designed for high current charging such as new energy, energy storage, folding lithium electric vehicles, electric motorcycles and electric bicycles. QSP10P-S has a wire-throwing sheath. It has many advantages such as small volume and large current, and the current can reach 210-270A.
